Miniature Cable Connector
Introduction

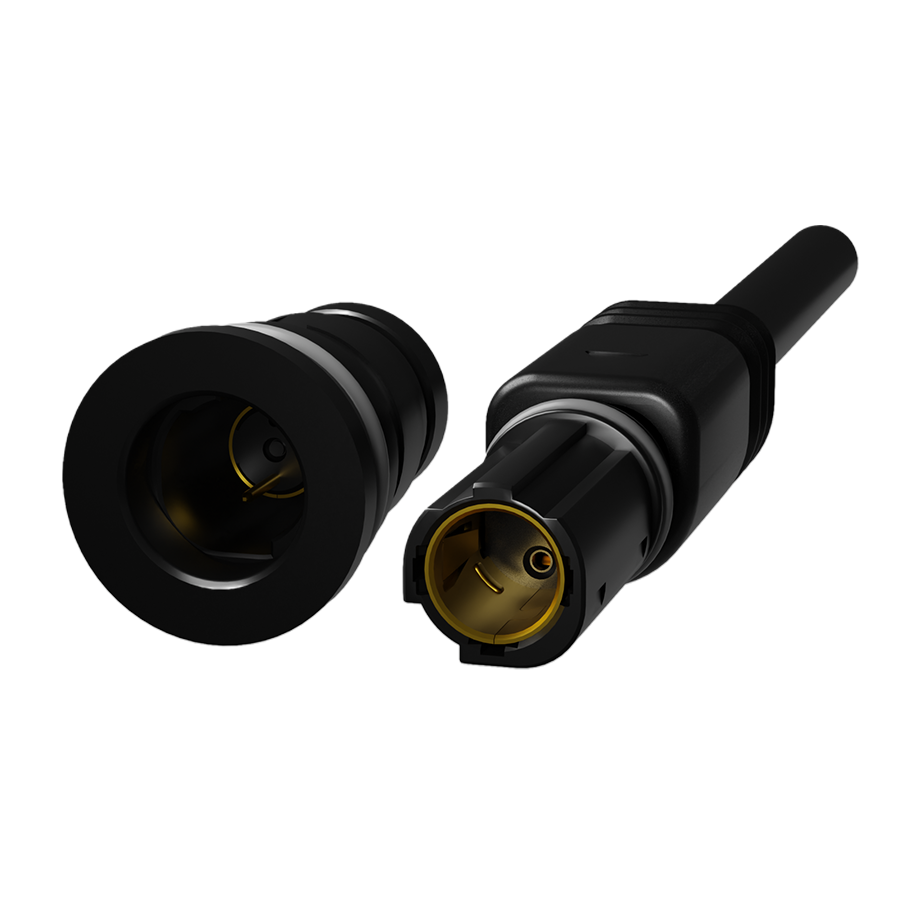

SMK's Miniature Cable Connector allows for multiple wire to wire and wire to board connections. Its reliable half locking mechanism and IP67 water and dustproofing allows it to withstand vibrations and tough environmental conditions. The keyed design prevents incorrect assembly and a metal internal housing provides a solid connector feel.
Features
- Metal half locking mechanism provides superior connector feel, reliable connection, and integrated GND (ground)
- Lineup features two to eight poles depending on the model to meet application requirements
- IP67 water and dustproof
- High-speed data transfer at USB2.0 speeds: Metal half locking mechanism also doubles as EMI shielding with an STP (shielded cable) option available
Specifications
| Compatible Cable Size: | AWG26 to 28 |
|---|---|
| Rated Current: | Up to 3A |
| Removal Force: | Over 20N |
| IP Rating: | IP67 |
Application
- Automation Robots: FA robotics actuator, motor, battery, sensor
- E-Bike/E-Scooter: seamless integration of battery, drive unit, charger, derailleur, suspension, cycling computer
- LED Lighting
- Agricultural Equipment
- Marine Equipment
Inquiries
Please feel free to contact us for product information and customization
