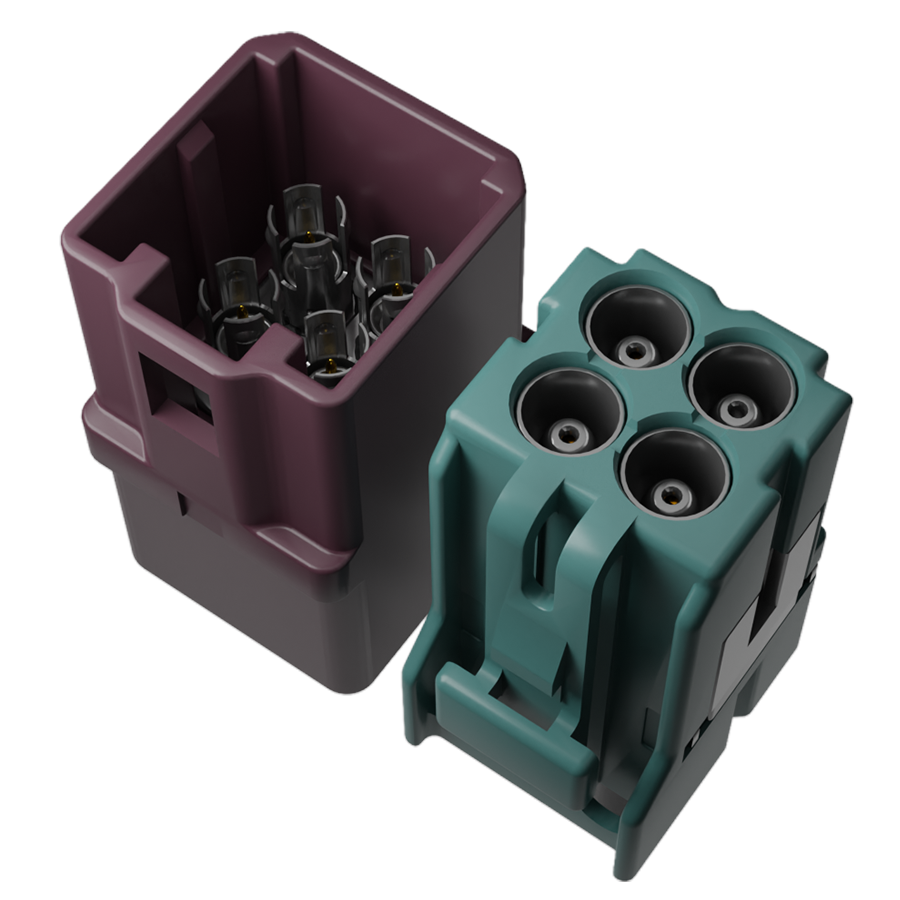

MH-1/MH-2 Connectors
Introduction
MH-1/MH-2 is a compact multi-coaxial connector that combines up to four pins. Its design saves up to 70% of PCB space compared to typical FAKRA connectors. It has a wide operating frequency range, keyed design to remove assembly error, and enhanced noise reduction through SMK's proprietary housing structure.
Features
- Up to four FAKRA coaxial pin in one connector
- Saves up to 70% of PCB space compared to typical 4x FAKRA
- Wide operating frequency range from DC to 6GHz
- Superior noise resistance from SMK housing structure
- Keyed design eliminates assembly error
Specifications
| Frequency Range: | DC to 6GHz |
|---|---|
| Nominal Impedance: | 50Ω |
| Compatible Cable: | 1.5D Coaxial |
Application
- Automotive: ADAS (Advanced Driver Assistance Systems), display, rear view camera
- Security Systems: Camera, motion sensors
Inquiries
Please feel free to contact us for product information and customization
