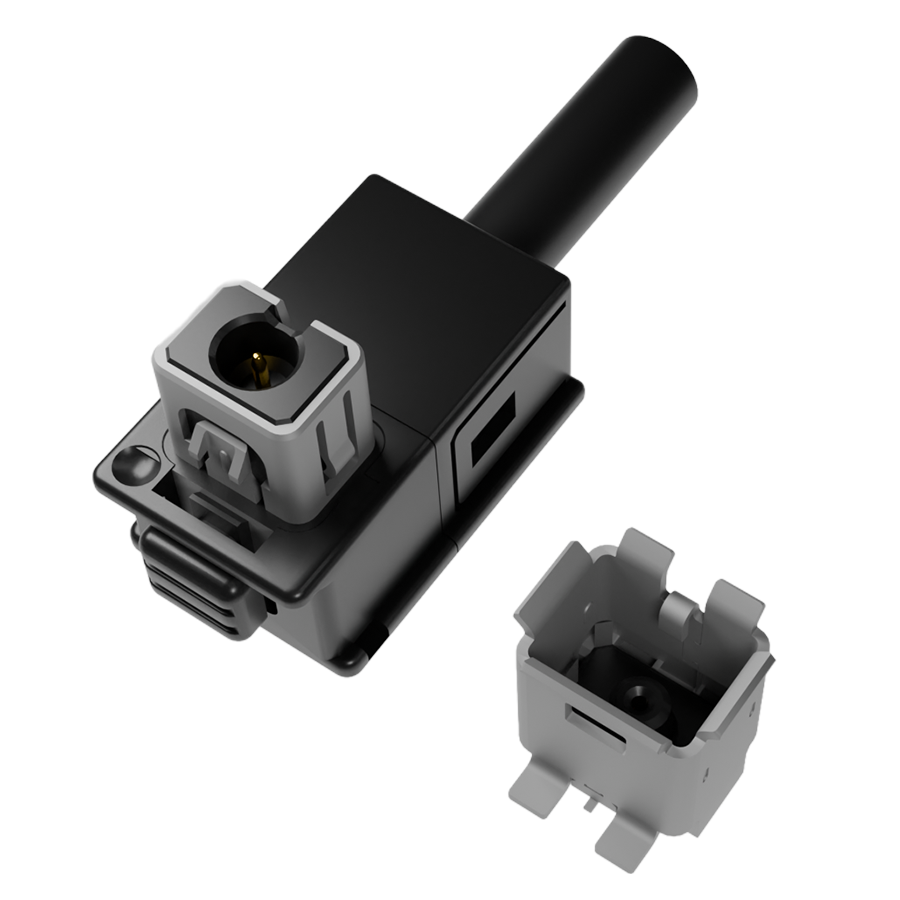

IA Series Connectors
Introduction
IA Series connectors are compact coaxial connectors with full locking capability. They are smaller than FAKRA connectors while maintaining frequency capabilities of 6GHz. Custom models that integrate coaxial and power pins are available.
Features
- Compact form factor: Smaller than FAKRA connectors by 56%
- Integrated full locking mechanism
- High frequency capability of 6GHz
Specifications
| Voltage/Current: | 60V/1.0A |
|---|---|
| Frequency Range DC: | Up to 6Ghz |
| Impedance: | 50Ω |
| Compatible Cable: | 1.5D |
| Mating Cycle: | 25 |
Application
- Automation Robots: Optical inspection, automated testing, warehouse robots
- Automotive: Driver Monitoring System (DMS)
- Wireless Devices: 5G (Sub-6), Wi-Fi 6 (2.4GHz/5GHz), Bluetooth®, GPS/GNSS, V2X (5.9GHz)
- IoT Gateway, drones, autonomous robots, portable healthcare products
Inquiries
Please feel free to contact us for product information and customization
