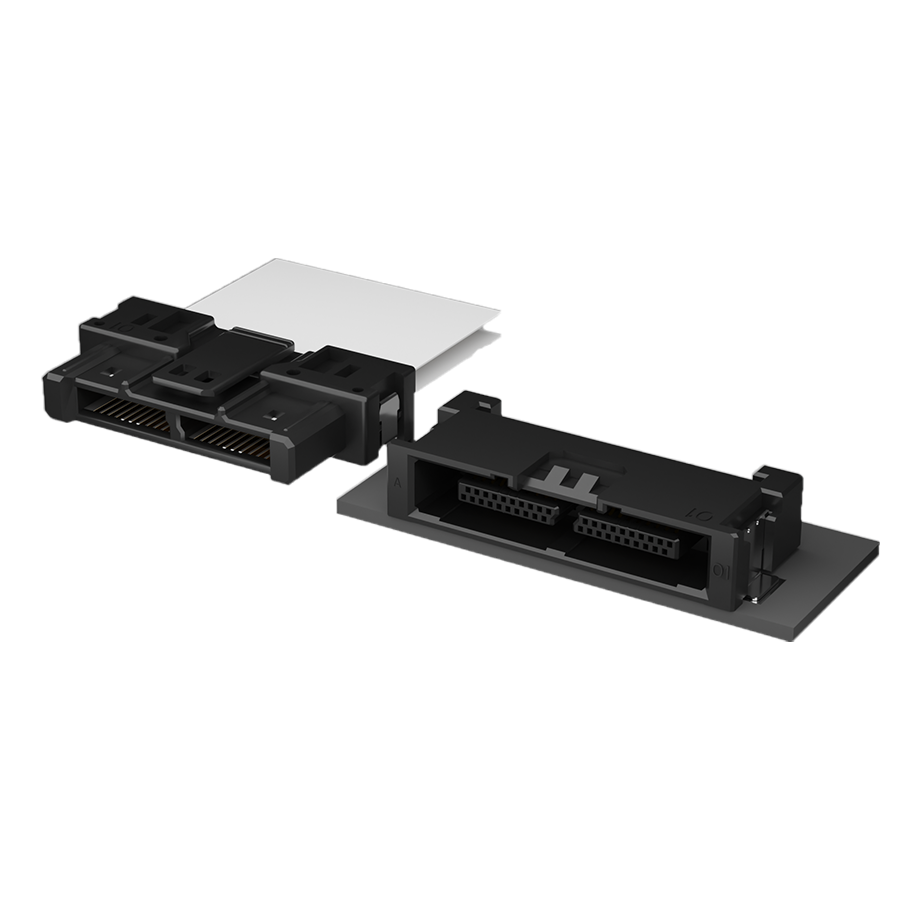

FV-1B FPC/FFC Connector
Introduction
FV-1B is a connector that connects FPC/FFC (flexible printed circuits/flexible flat cables) to PCBs using a two-piece locking structure. Design to replace Wire to Board connectors, it saves space, reduces weight and decreases assembly costs.
Features
- Two-piece structure with locking plug and receptacle housing
- Low profile design with 8.0mm mating height
- Secure retention of FPC/FFC in the housing
- Housing prevents accidental electrical contact and/or damage to the FPC/FFC pad when mating
Specifications
| Pitch: | 1.0mm |
|---|---|
| Number of Pins: | 40 |
| Rated Voltage: | 100V DC, 1A |
| FPC/FFC Insertion Direction: | Right angle |
| Mounting Style: | SMT |
| Applicable FPC/FFC Thickness: | 0.3mm |
Application
- Automation Robots: FA robotics controllers, sensors
- Automotive: EV battery CMU/BMS (cell management unit/battery monitoring system) connections
- Industrial: Solar panel power monitoring
- Agricultural Equipment
