EA-5X One Action FPC/FFC

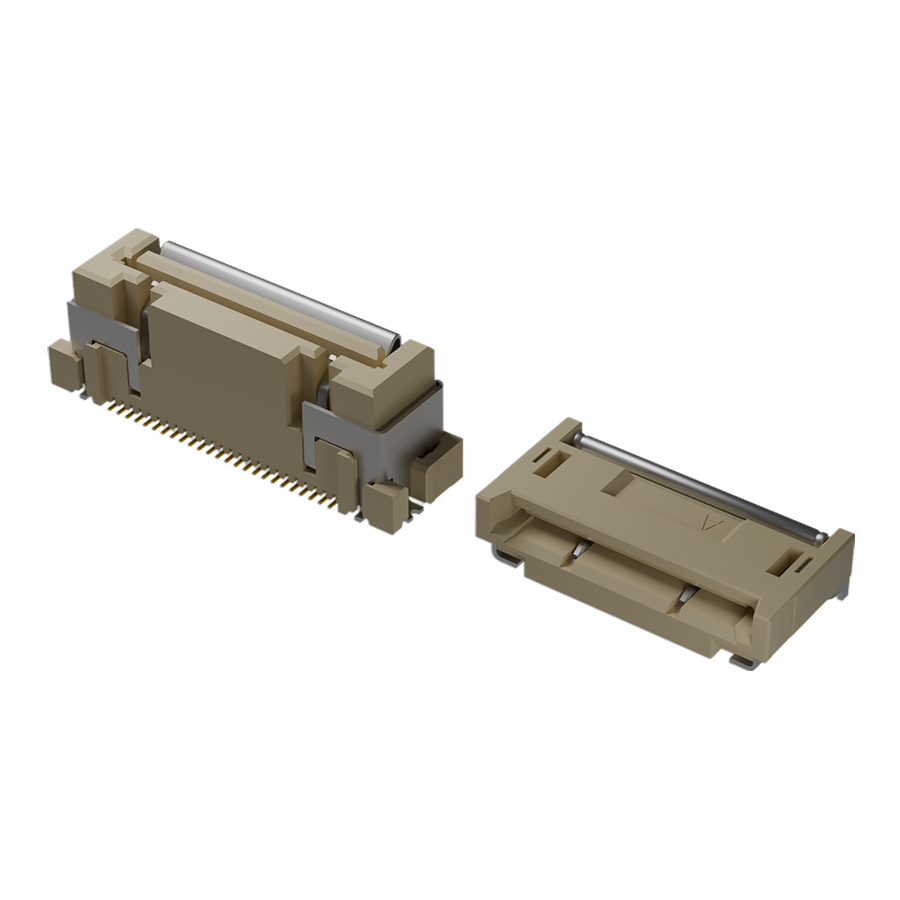

EA-5X FPC/FFC Connector

Introduction

EA-5X is a connector that connects FPC/FFC (flexible printed circuits/flexible flat cables) to PCBs and locks in a single action. Its design provides a solid connector feel, makes it easy to check the condition of FPC insertion, and prevents half insertion conditions. Its design makes it easy to check the condition of the soldered terminal connection.

Features

  • One action lock system with secure retention of FPC/FFC in the housing
  • Wide range of pin counts
  • Able to check the condition of insertion through windows at the top of the connector
  • Lever is made of SUS with high durability

Specifications

Pitch:0.5mm
Number of Pins:Right angle type (20, 25, 30, 40, 50) Vertical type (25)
Mounting Style:SMT
FPC/FFC Insertion Direction:Straight, right angle



Application

  • Enables Automated Production: Automated assembly, optical inspection, pick and place
  • Robotics: Gripper, joint, tool changer, camera
  • BMS
  • Consumer, automotive and medical device production lines





Inquiries

Please feel free to contact us for product information and customization
