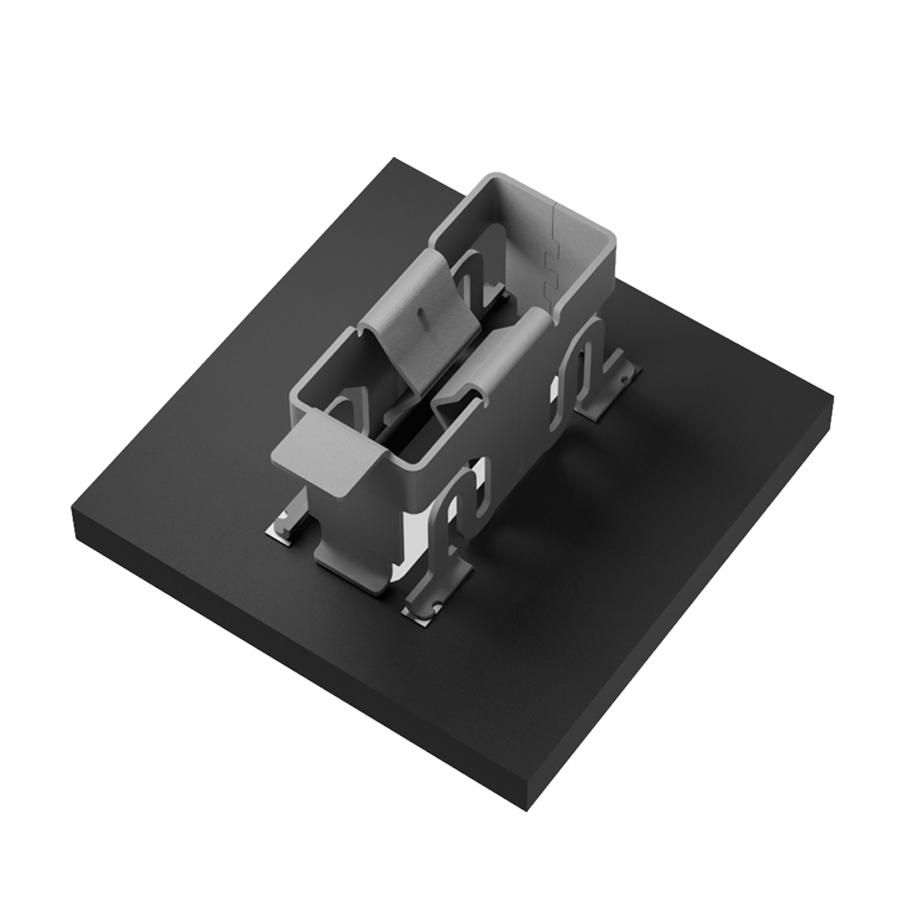

Active Floating Socket Connector
Introduction
Active Floating Socket connects flat tab terminals directly to PCBs via SMT. It enables easier and automated assembly, reduces component count and improves repairability. Its floating structure accommodates misalignment during assembly, allowing automated installation. The connector contacts the terminal on both sides for a reliable connection and supports high current up to 100A, depending on the model. The AFS lineup covers a wide range of specifications and continues to expand.
Features
- Floating of up to ±0.8 in X direction
- SMT design
- Double contact structure resists shock of 150G
- High current of up to 100A
- Bottom entry: Allows for terminal connection from either side
- Accepts Tab 250, Tab 375 or custom terminals
Application
- Enables automated production: Pick and place, automated assembly and flexibility
- Automotive: On-board chargers, electric oil pumps, eps monitors, DC-DC converters
- Data center server rack power connections
- E-Bike: Drive units, motors
- Battery management system
- Industrial: Industrial motors, inverters
Inquiries
Please feel free to contact us for product information and customization
